Home TOYOTA SUPRA MKIV Parts 1993-20021993-2002 Supra Twin Turbo MKIV TT Performance Parts & AccessoriesWastegatesGarrett GVW 45mm External Wastegate replaces MV-R

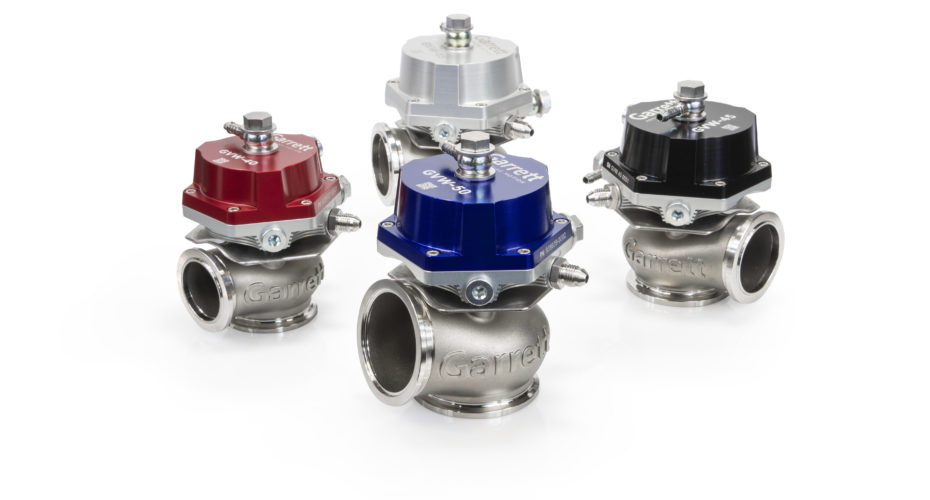

Garrett GVW 45mm External Wastegate replaces MV-R
 |
Click to Enlarge |
   |
We know our customers need to save a little extra whenever possible, so we have introduced our "Make an Offer" feature! Here is how it works. You will have a maximum of three bids, that we review instantly. If accepted you win and can immediately buy the product at that price. Don't worry, if you don't win we will make you an instant offer to buy it now. Another way to help you save big with SupraStore.com!
Uses same inlet flange as TiAL MVR and TurboSmart HyperGate 45!
CFD tested for maximum flow and thermal efficiency
Optimized actuation stability and temperature resistance for superior durability
Replaceable valve and bushing components to increase service life
Robust design for easy diaphragm replacement
Liquid-cooled actuator ports for use on severe applications (up to 52% reduction in body temp) Anodized aluminum actuator cover
Four Colors: Red | Blue | Black | Silver
Three Sizes: 40mm | 45mm | 50mm
Springs | Fittings | Flanges | V-bands included

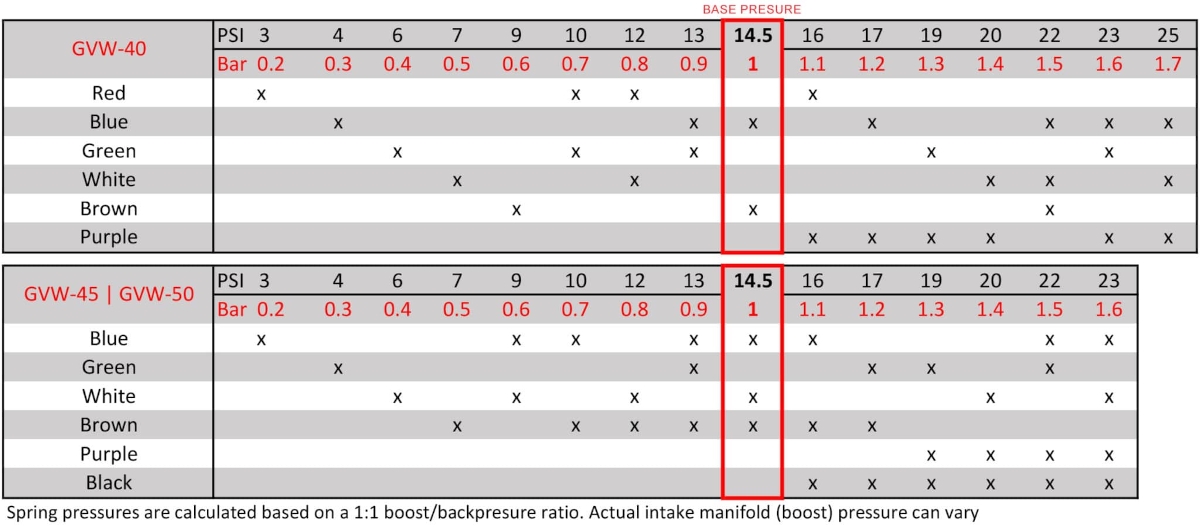

Standard Base Pressure: 1 Bar | 14.5 PSI
Maximum Base Pressure:
GVW40: 25 PSI | 1.7 Bar
GVW45 | GVW50: 23 PSI | 1.6 Bar
Minimum Base Pressure: 3 PSI | 0.2 Bar
CFD tested for maximum flow and thermal efficiency
Optimized actuation stability and temperature resistance for superior durability
Replaceable valve and bushing components to increase service life
Robust design for easy diaphragm replacement
Liquid-cooled actuator ports for use on severe applications (up to 52% reduction in body temp) Anodized aluminum actuator cover
Four Colors: Red | Blue | Black | Silver
Three Sizes: 40mm | 45mm | 50mm
Springs | Fittings | Flanges | V-bands included
Standard Base Pressure: 1 Bar | 14.5 PSI
Maximum Base Pressure:
GVW40: 25 PSI | 1.7 Bar
GVW45 | GVW50: 23 PSI | 1.6 Bar
Minimum Base Pressure: 3 PSI | 0.2 Bar
