***Black Anodized Finish ONLY***

Standard 2JZ use will include a counter clockwise rotation, rear mounted cable.

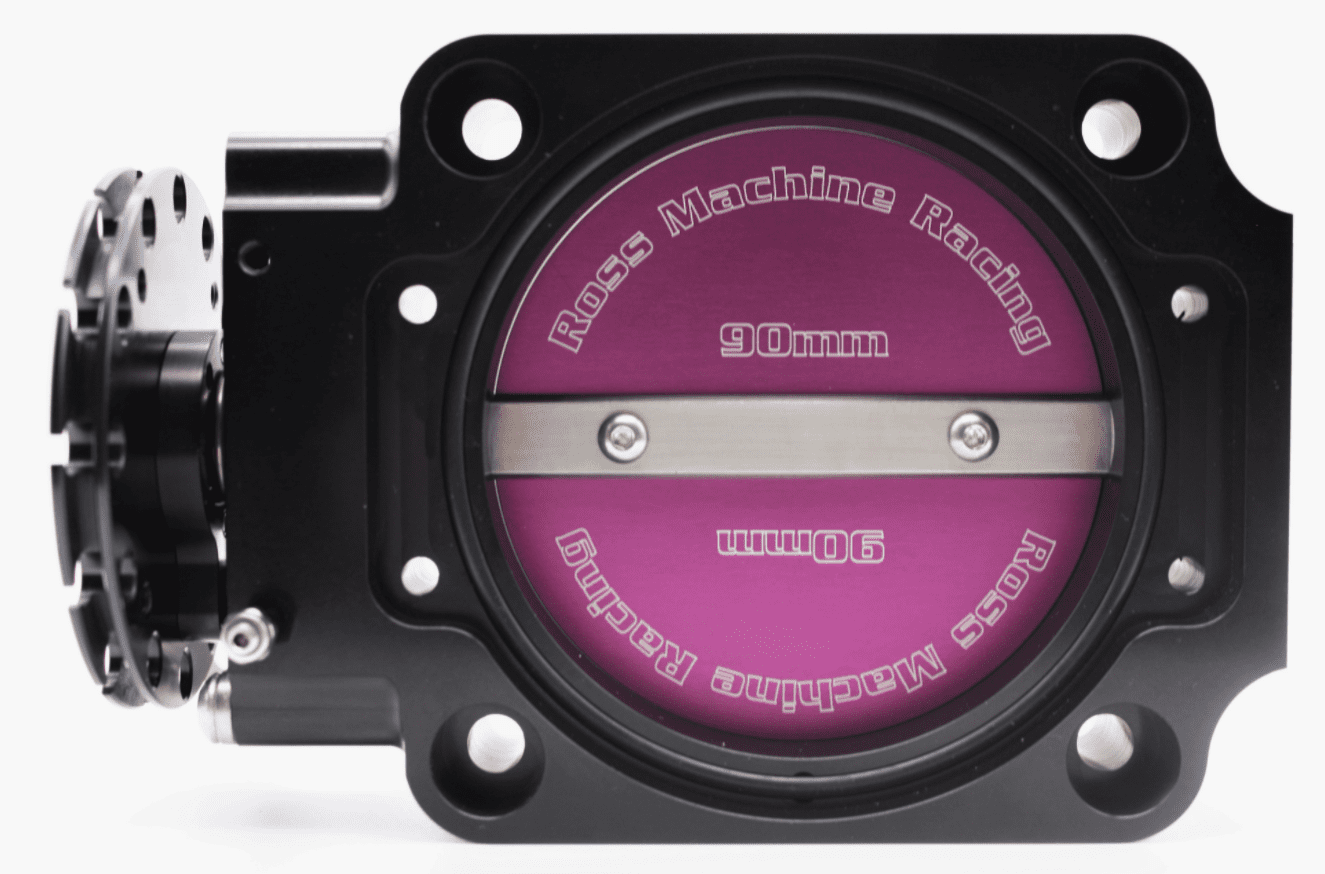

RMR 90mm Throttle Body
Ross Machine Racing's 90mm bore throttle body is made to the highest standards. Manufactured using CNC machining and is made from 6061 billet aluminum combined with a stainless steel shaft.

TPS Notes:

If using - 86-93 5.0L Mustang TPS - Direct bolt on - Standard CW Mustang T/Wheel Rotation

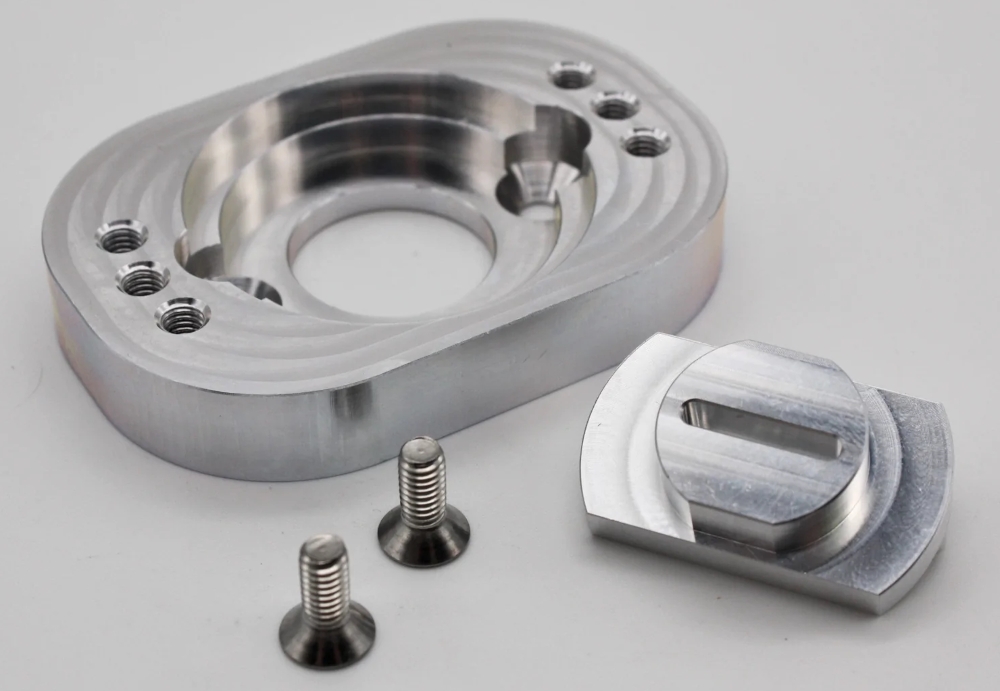

If using - Toyota MR2 TPS - TPS Adapter needed - Standard CW Mustang T/Wheel Rotation
If using - Toyota Supra 2JZGTE TPS - TPS Adapter needed - Reverse CCW T/Wheel Rotation
If using - Lexus IS300 TPS - TPS Adapter is needed, but... it can be ccw or cw. See pictures below for help.

Features:
Uses same mounting bolt pattern as a Ford Mustang 5.0L throttle body. Does NOT bolt to factory 2JZ intake manifold
M8x45mm screws and washers included
Total thickness including the hose mount is 2-1/2 inches
Available in standard Mustang CW or CCW rotation
Cable mounting bracket pre-installed
90mm diameter blade - CNC machined from 6061 aluminum
4" (101mm) hose connection or other bolt-on adapters
CNC solid billet 6061 aluminum construction
1/2" stainless steel shaft - split shaft design to handle high boost without breaking
Black Anodize finish with Ross Machine Racing logo
Includes 4" o-ring installed in front and back for prefect seal
Needle bearing with seal to minimize leakage under high boost
2.7" throttle cable pulley
